High Pressure Centrifugal Fan
>
Centrifugal Ventilation Dust Extraction Fan High Wear Resistance

Centrifugal Ventilation Dust Extraction Fan High Wear Resistance

Product Details:
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-10
Detail Information
Place of Origin:
Henan China
Brand Name:
SIMO
Certification:
CE, ISO9001:2008,TUV
Model Number:
SIMO Blower 9-10
Application:
Industrial Ventilation
Feature:
High Performance
Current Type:
AC
Voltage:
380V/415V/440V/660V/3KV/6KV
Mounting:
Free Standing
Warranty:
1 Year
Highlight:

High Light

Highlight:

high pressure centrifugal blower

,

stainless steel centrifugal fan

Trading Information
Minimum Order Quantity:
1Set
Price:
300-5000 USD
Packaging Details:
Export Wooden Case Packing, Bare Package
Delivery Time:
15-45 Days
Payment Terms:
L/C, T/T, Payment Term Is Negotiable
Supply Ability:
500 Sets Per Month
Product Description

High Pressure Centrifugal Ventilation Industrial Boiler Fans



Introduction



High pressure centrifugal ventilation industrial boiler fans are applied in industrial boiler systems, whose main function is boiler ventilation. According to fan parameters you need, SIMO can make centrifugal blower fan technical solution for you. So please provide air capacity, pressure range, medium temperature, voltage and other requirements, more details will help us design suitable technical solution for you. Below boiler fan picture for your reference.

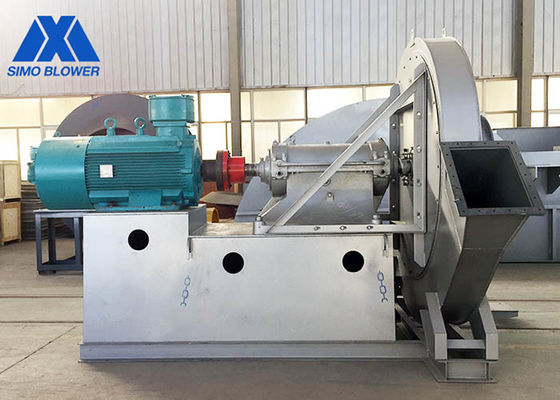

Centrifugal Ventilation Dust Extraction Fan High Wear Resistance 0



Technical data



Centrifugal Fan

series

Centrifugal Fan

Model

Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m3/h)
Power
(kW)
9-10 8D 1450~2900 3231~15034 3297~14287 7.5~110
9D 1450 4101~4597 4695~10717 15~22
10D 1450 4958~5840 6440~15455 30~37
11.2D 960~1450 2705~7364 5990~21713 15~75
12.5D 960~1450 3975~9229 8327~30186 22~110
14D 960~1450 4249~11668 11699~42409 37~220
16D 960~1450 5575~15425 17463~63305 75~315



Application



Industrial boiler centrifugal fans are applied in industrial boiler, they also can be applied in industrial kilns, blast furnace, industrial waste heat recovery device, electrolytic aluminium production line air purification system and other industrial work environment.

Centrifugal Ventilation Dust Extraction Fan High Wear Resistance 1



Advantages and Features



1. It can output very high pressure and can work at higher medium temperature, suitable for any industrial occasion where high pressure & high temperature gas needs to be delivered.

2. In the case of using the common base , the installation is very simple and basically does not require the support of professional technicians.

3. The bearing box is reserved with the temperature and vibration sensor installation position, which can conveniently install the fan operation monitoring device.



Centrifugal Ventilation Dust Extraction Fan High Wear Resistance 2
