High Pressure Centrifugal Fan
>

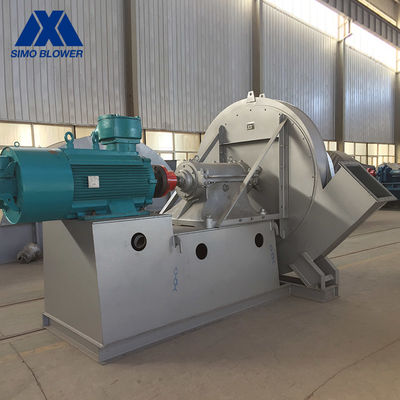

Explosion Proofing Industrial Boiler Centrifugal Blower Fan

Explosion Proofing Industrial Boiler Centrifugal Blower Fan

Product Details:
Place of Origin: Henan China
Brand Name: SIMO
Certification: CE, ISO9001:2008,TUV
Model Number: SIMO Blower 9-10
Detail Information
Place of Origin:
Henan China
Brand Name:
SIMO
Certification:
CE, ISO9001:2008,TUV
Model Number:
SIMO Blower 9-10
Type:
Centrifugal Fan
Impeller:
Dynamic Balanced
Motor Type:
Three Phase AC Motor
Drivetrain:
Direct/Coupling Driven/V-belt Driven
After-sales Service Provided:
Field Installation, Commissioning And Training
System Type:
Single Inlet, Overhang Type
High Light:

High Light

High Light:

Boiler centrifugal blower fan

,

Explosion Proofing centrifugal blower fan

Trading Information
Minimum Order Quantity:
1 Set
Price:
300-5000 USD
Packaging Details:
Export Wooden Case Packing, Steel pallet Packing
Delivery Time:
15-35 Days
Payment Terms:
T/T, L/C, Payment Term Is Negotiable
Supply Ability:
500 Sets Per Month
Product Description

High Pressure Explosion Proofing Industrial Boiler Centrifugal Fan



Introduction



The 9-11 series fan has a large flow rate and moderate pressure.

This fan is designed for the purpose of using industrial boiler to work in the high-efficiency area and achieve the energy-saving target.

The fan is suitable for equipped with economizer (heater) and smoke and dust removal device.

1. When the airflow resistance is increased, the motor load will be automatically reduced and the motor will not be burnt.

2.The fan is made of high quality carbon steel, and can also use stainless steel or other metal materials according to customer requirements.

3. Running test and vibration value detection after the production is completed, the fan operation is reliable.



Technical data



series model Rotation Speed
(r/min)
Total Pressure
(Pa)
Air Capacity
(m³/h)
Power
(kW)
9-11 4D 2900 22852452 32976594 5.57.5
4.5D 2900 28933060 46959389 1115
5D 2900 35703854 644012880 1522
5.6D 2900 44824805 904818095 3045
6.3D 1450 14221500 644112882 7.511
7.1D 1450 18041942 922018439 1118.5
8D 1450 22852462 1318926378 18.530
9D 1450 28933099 1877937558 3755
10D 1450 35703854 2576042933 5590
11.2D 9601450 19614835 2396172381 30160
12.5D 730960 14122638 2532966620 2290
14D 730960 17753305 3558693596 45160
16D 730960 23144295 53120139712 75280


Advantages and Features



It is a high-efficiency energy-saving product jointly designed by the national fan industry and organized by the national wind power industry and the Ministry of Machinery Industry.

It has the characteristics of high efficiency, low noise, flat performance curve and wide efficient area.

Industrial boilers of 5 ~ 35 tons/hour can be used, those with similar intake conditions and suitable performance can be used, but the maximum temperature shall not more than250°C.

Before the induced draft fan, dust removal device with a dust removal efficiency of no less than 85% must be installed to reduce the dust content of the smoke entering the fan.

It can not only reduce the pollution of the smoke on the environment, but also reduce the wear of the smoke on the fan, which is conducive to prolonging the life of the fan.
