Low-Flow Medium-Pressure High-Efficiency Ventilation Centrifugal Fan Blower

Name: Low-Flow Medium-Pressure High-Efficiency Ventilation Centrifugal Fan Blower
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: SIMO Blower 6-08
Price: 2,500.00 USD
Availability: InStock

Brand Name

SIMO

Product Model

SIMO Blower 6-08

Certificate

CE, ISO9001:2008,TUV

Country Of Origin

Henan China

MOQ

1 Set

Unit Price

Negotiable

Payment Method

T/T, L/C, Payment Term Is Negotiable

Supply Capacity

500 Sets Per Month

Product Details

Highlight:

low-flow centrifugal fan blower

medium-pressure industrial centrifugal fan

high-efficiency ventilation blower

Application: Industrial/ Explosion Resistant

Mounting Types: Base Mounted

Total Pressure Range: 2284-14122PA

Material: Carbon Steel

Drive Type: Belt / Direct Driven

Speed: ≤3500rpm

Voltage: 380V/415V/440V/660V/6KV/10KV

Customized Support: ODM OEM OBM

Bearing Cooling: Air Cooling Or Circulating Water Cooling

Warranty: 1 Year

Product Description

Detailed Specifications And Features

Low-Flow Medium-Pressure High-Efficiency Ventilation Centrifugal Fan blower

Low-Flow Medium-Pressure High-Efficiency Ventilation Centrifugal Fan is a fan product designed by us, It is widely used in environmental dust removal, material transportation, and industrial equipment.So, if you need it, please feel free to contact us and provide your relevant parameters. Our design engineers customize centrifugal fans for your plant.

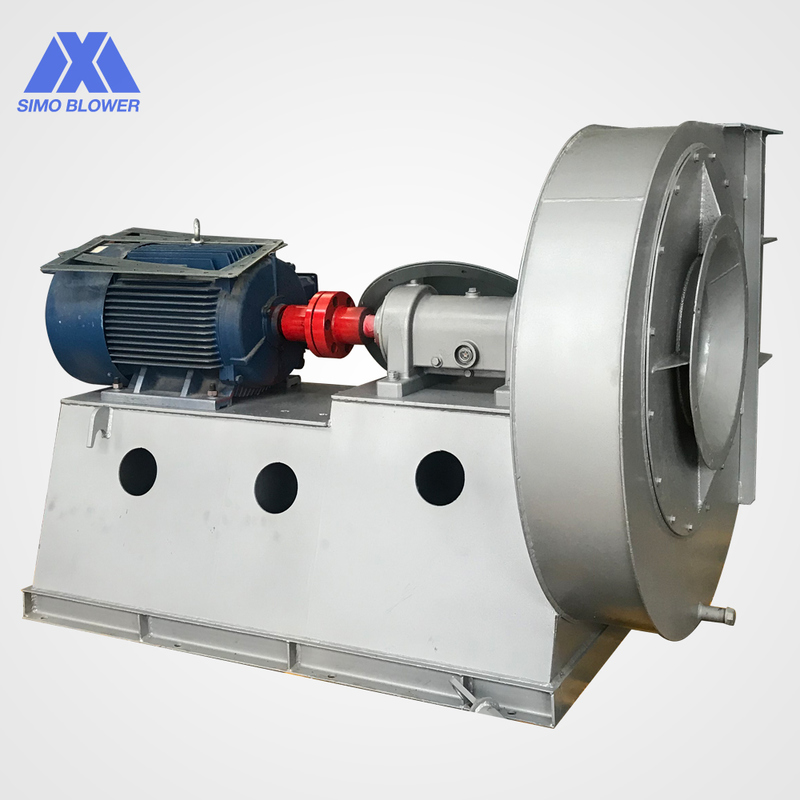

Low-Flow Medium-Pressure High-Efficiency Ventilation Centrifugal Fan Blower 0
Product Features

1. This series of fans is a new type of high efficiency industrial fan in the field of small flow and medium pressure.
2. The current collector and impeller front plate are processed by advanced spinning process, and the precision is guaranteed.
3. V-belt and coupling drivetrain fan is equipped with integral bearing housing, good lubrication, stable operation, long bearing life.
4. Equipped with tapered sleeve embedded pulley, easy to disassemble.
5. The collector is equipped with a mounting flange to facilitate the customer to use the pipeline

The following datas are only part of performance of our product.
If you can't find the datas you need, pls send us your performance requirements
we will provide you customized design service.

Series no.	6-08 series	Feature selection
		Normal	anti-corrosion	wear-resisting		High temperature		anti-explosion	Remarks
Performance	Impeller diameter	400-2800mm
	Rotation speed	≤3000rpm
	Pressure range	2284-14122Pa
	Flow range	1381-261494m³/h
Structure	Blade type	Backward, Straight, Aerofoil type
	Impeller support	SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type
	Lubrication method	Oil bath lubrication, grease lubrication, lubrication oil station							Can be specified
	Cooling method	Air cooling, Water cooling, Oil cooling							Can be specified
	Driven mode	Direct driven, Coupling driven, Belt driven							Can be specified
Gas composition	Gas temperature	Normal	Customer request	Customer request	≥250ºC		Customer request
	gas characteristic	Clean gas	Corrosive gas	Particulate dust	High temperature gas		Flammable gas, explosive gas
System configuration	Motor brand	Chinese famous brand, ABB, Siemens, WEG etc							Can be specified
	Impeller	High quality carbon steel	FRP, Stainless steel, Rubber Lining	Wear-resistant layer or wear-resistant liner, ceramic patch	High temperature high quality alloy steel		FRP, Aluminum alloy		Can be specified
	Air inlet cone	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel		High quality carbon steel		Can be specified
	Casing	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel		High quality carbon steel		Can be specified
	Air damper	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel		High quality carbon steel		Can be specified
	Main shaft	High strength carbon steel, Alloy structural steel							Can be specified
	Bearing	ZWZ, SKF, FAG, NSK							Can be specified
	Bearing housing	Cast iron
	Foundation bolts	GB799-1988
Option parts	System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.
