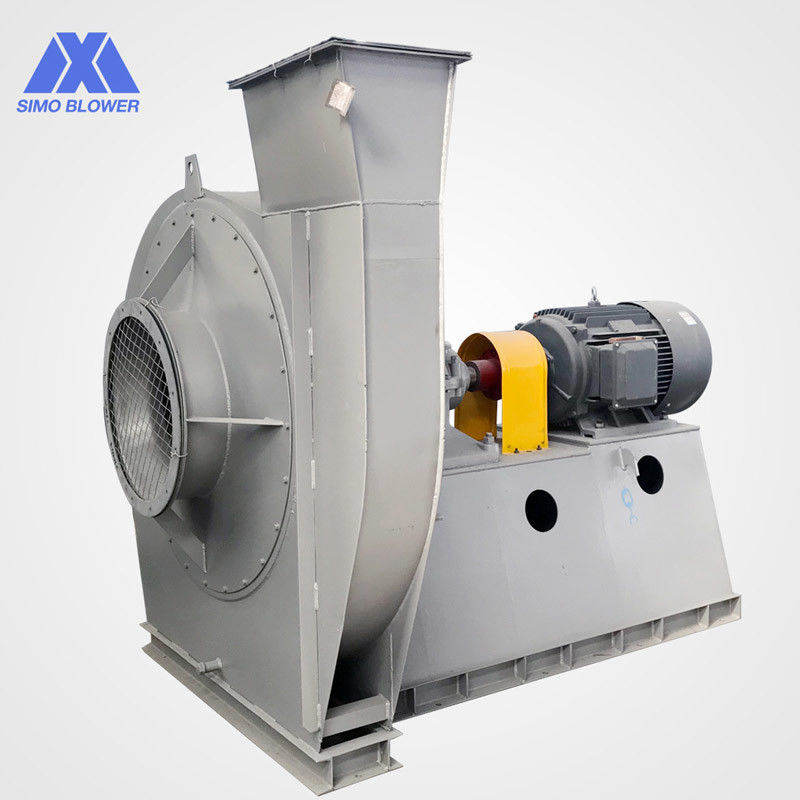

9-08 Coupling Driven Centrifugal Fan for Industrial Air Supply

9-08 Coupling Driven Centrifugal Fan for Industrial Air Supply
Brand Name
SIMO
Product Model
SIMO Blower 9-08
Certificate
CE, ISO9001:2008,TUV
Country Of Origin
Henan China
MOQ
1 Set
Unit Price
300-5000 USD
Payment Method
T/T,L/C,Payment Term Is Negotiable
Supply Capacity
500 Sets Per Month
Product Details
Highlight:

Q345 Coupling Driven Explosion Proof Blower

,

Backward Air Supply Explosion Proof Blower

,

Circulating Water Cooling Backward Centrifugal Fan
Application: Industrial Ventilation
Feature: High Performance
Bearing Cooling: Air Cooling Or Circulating Water Cooling
After-Sales Service Provided: Field Installation, Commissioning And Training
Electric Current Type: AC
Warranty: 1 Year
Product Description
Detailed Specifications And Features

9-08 Coupling Driven Centrifugal Fan for Industrial Air Supply


Introduction


Industrial air supply and process ventilation systems often require stable airflow, reliable pressure and low-maintenance power transmission.

SIMO 9-08 series centrifugal fans use a coupling drive to connect the motor and fan shaft, avoiding the regular belt tensioning and replacement required by belt-driven systems.

The fan is suitable for industrial air supply, boiler systems, dust collection, metallurgical processes, cement plants and large-scale ventilation systems.

Different fan sizes, speeds, materials and cooling configurations can be selected according to the actual operating conditions.


Technical data

series model Rotation Speed
(r/min)		 Total Pressure
(Pa)		 Air Capacity
(m³/h)		 Power
(kW)
9-08 7.1D 2900 10635～12427 12292～19360 75～110
8D 1450～2900 3249～15955 8792～27696 18.5～200
9D 1450 4181～4869 12518～19717 30～45
10D 1450 5065～6143 17172～30052 55～75
11.2D 960～1450 3031～7747 15973～42221 30～132
12.5D 960～1450 3450～9713 22206～58695 45～250
14D 960～1450 4341～12285 31197～82463 75～400
16D 960～1450 5696～16250 46569～123090 185～850


Application


Explosion proof centrifugal fan is widely used in the cement industry, building materials industry, environmental protection industry, metallurgical industry, power industry projects such as large-scale dust collector, industrial boilers, ventilation systems, cooling.


FAQ


1. What parameters need to be provided when you design the industrial centrifugal fans?

Answers: Air flow, total pressure or static pressure, inlet temperature, local voltage and frequency, Altitude etc.

If there is flammable and explosive gas, or big dust loading in the medium, please also inform the designer.

2. How about your company’s pre-sales service and after-sales service?

Answers: Before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition, to make sure the centrifugal fan efficiency operation.

After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: SIMO Blower has obtained ISO 9001-2008, CE, TUV certifications and so on.
