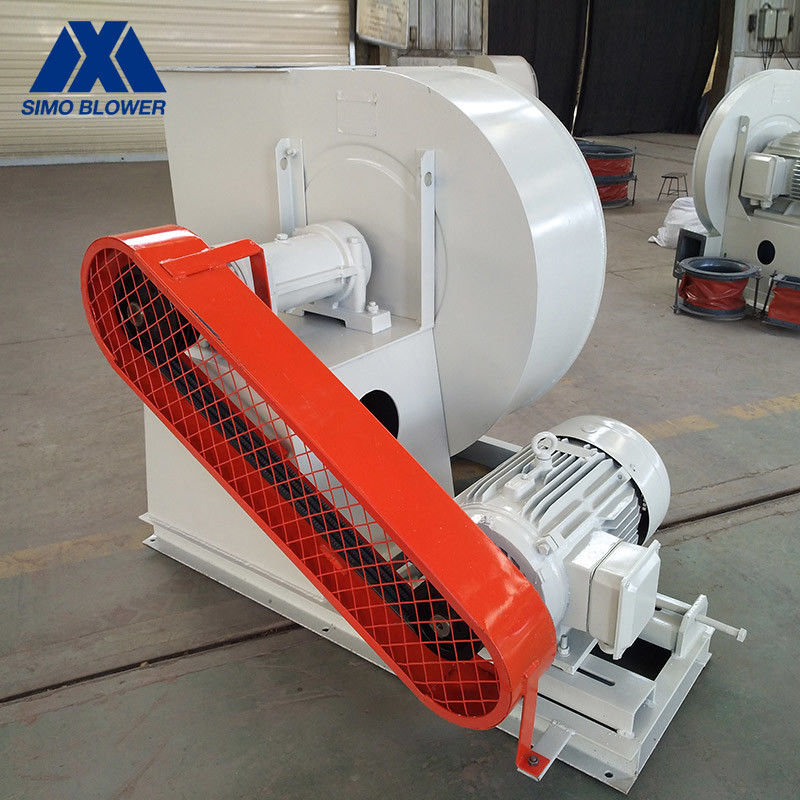

Low Pressure Industrial Centrifugal Fan with Q235 Steel for Ventilation Applications

Name: Low Pressure Industrial Centrifugal Fan with Q235 Steel for Ventilation Applications
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: SIMO Blower 6-06
Price: 2,650.00 USD
Availability: InStock

Brand Name

SIMO

Product Model

SIMO Blower 6-06

Certificate

CE, ISO9001:2008,TUV

Country Of Origin

Henan China

MOQ

1 Set

Unit Price

300-5000 USD

Payment Method

T/T, L/C, Payment Term Is Negotiable

Supply Capacity

500 Sets Per Month

Product Details

Highlight:

industrial blower fan

backward centrifugal fan

Blade: Backward

Impeller Support: SWSI (Single Width, Single Inlet), Impeller Overhung

Electric Current Type: AC

Mounting: Free Standing

System Type: Single Inlet, Overhang Type

Medium: Clean Air/Dusty Air

Product Description

Detailed Specifications And Features

Low Pressure Industrial Centrifugal Fan with Q235 Steel for Ventilation Applications

Introduction

The 6-06 series boiler fan is mainly used for the fan system of the 2t/h~670t/h steam boiler of the thermal power plant, and also meets the requirements of the performance parameters of the high pressure head of the fluidized bed furnace.

This series of fans can also be used for dust removal, mine ventilation and general ventilation systems. The medium transported by the forced draft fan is air, and the medium transported by the induced draft fan is flue gas or a gas containing impurity particles.

It can be used for more than four years when the concentration of impurities is less than 200 mg/m3.If it contains large impurities, it also can be used, but the service life is relatively shortened.

The maximum temperature used for the fan does not exceed 250°C.

It has the characteristics of high efficiency and low noise, and this series is a range of centrifugal fans with a wide range of performance.

Product features

1.This series of fan design is based on aerodynamic sketches determined by more than one year of model test and adopts advanced proprietary technology, such as high-strength wear-resistant impeller and anti-leakage bearing housing.

2. The range of high-efficiency working conditions is wide, the machine numbers are arranged intensively, and it is easy to select high-efficiency working conditions.

3. High strength wear resistant impeller.

4. The fan is integrated or split assembly.

5. The fan is fully equipped.

6. Relevant parameters complete.

7. The fan is easy to install and repair.

Technical specifications

Series no.	6-06.51 series	Feature selection
		Normal	anti-corrosion	wear-resisting		High temperature		anti-explosion	Remarks
Performance	Impeller diameter	400-2800mm
	Rotation speed	≤3000rpm
	Pressure range	1706-8265Pa
	Flow range	2752-498507㎥/h
Structure	Blade type	Backward, Straight, Aerofoil type
	Impeller support	SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type
	Lubrication method	Oil bath lubrication, grease lubrication, lubrication oil station							Can be specified
	Cooling method	Air cooling, Water cooling, Oil cooling							Can be specified
	Driven mode	Direct driven, Coupling driven, Belt driven							Can be specified
Gas composition	Gas temperature	Normal	Customer request	Customer request	≥250℃		Customer request
	gas characteristic	Clean gas	Corrosive gas	Particulate dust	High temperature gas		Flammable gas, explosive gas
System configuration	Motor brand	Chinese famous brand, ABB, WEG etc							Can be specified
	Impeller	High quality carbon steel	FRP, Stainless steel, Rubber Lining	Wear-resistant layer or wear-resistant liner, ceramic patch	High temperature high quality alloy steel		FRP, Aluminum alloy		Can be specified
	Air inlet cone	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel		High quality carbon steel		Can be specified
	Casing	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel		High quality carbon steel		Can be specified
	Air damper	High quality carbon steel	FRP, Stainless steel, Rubber Lining	High quality carbon steel	High quality carbon steel		High quality carbon steel		Can be specified
	Main shaft	High strength carbon steel, Alloy structural steel							Can be specified
	Bearing	ZWZ, SKF, FAG, NSK							Can be specified
	Bearing housing	Cast iron
	Foundation bolts	GB799-1988
Option parts	System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.
